Combined Junction Box – EP096I1

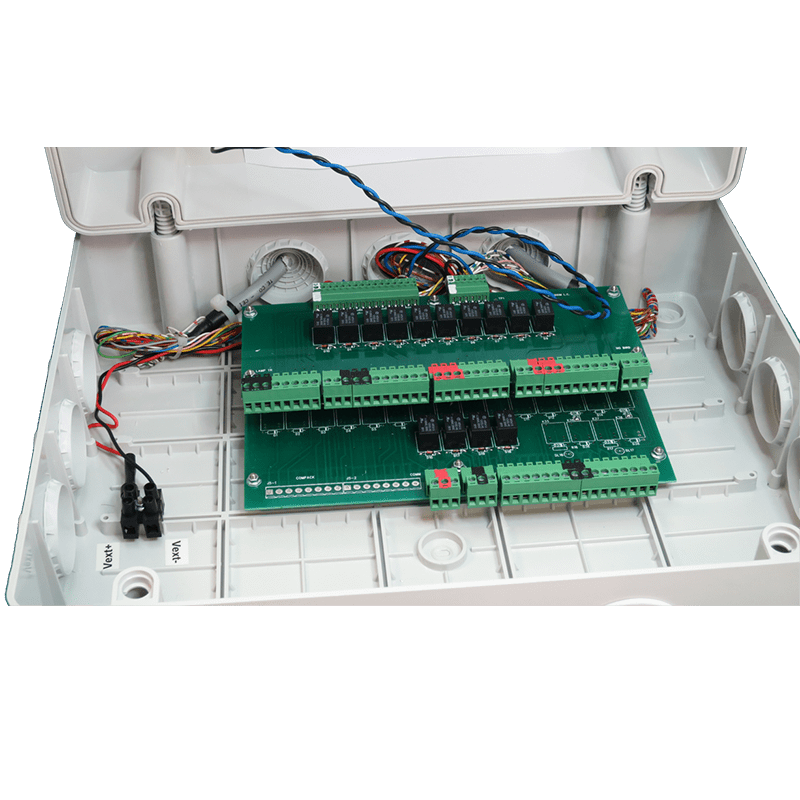

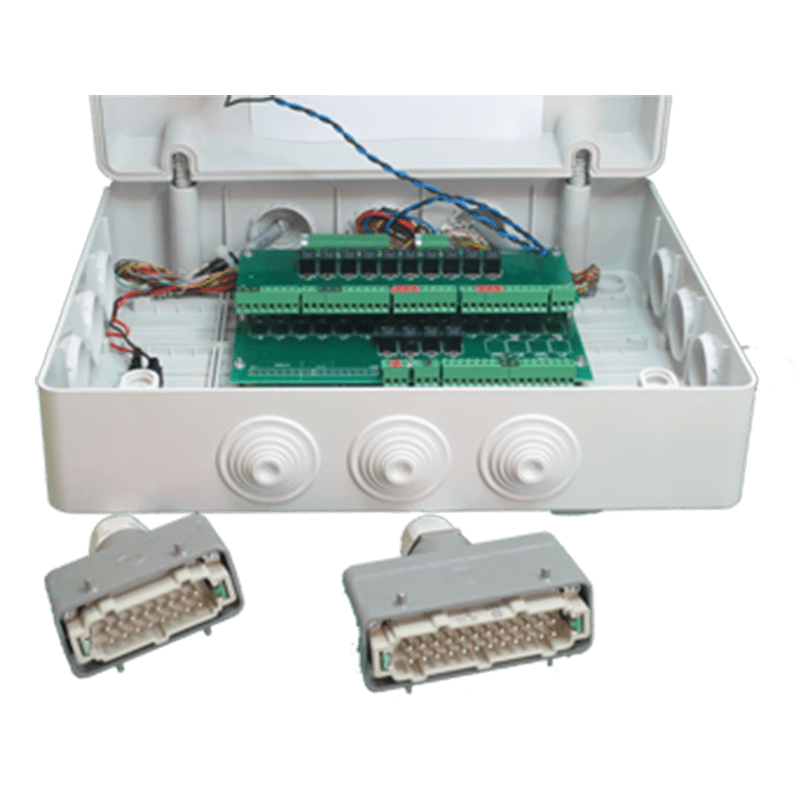

The EP096I1 wiring box is usually mounted near the EP095M unit and houses numbered terminal blocks to which the cables coming from the microphones and the throwing machines will be connected. It is equipped with two shielded cables, with relative connectors, for connection to the EP095M control unit and for immediate operation and maintenance of the firing range. For combined fields switching between DTrap / Compak / Skeet is done automatically by changing discipline on the unit.
There are different models depending on the disciplines supported by the shooting range, and it is also supplied with relays for driving the gun launching machines that require voltages other than + 12vdc.
Technical Characteristics
- DIMENSIONS: 40x30x13 cm
- WEIGHT: 4,0 Kg
- OPERATING TEMPERATURE RANGE: -10°C ÷ +45°C
- PROTECTION DEGREE: IP55
Models
- Combined Trap & Skeet with automatic switching
- Combined Trap & Skeet with manual switching via switch
- Combined Trap & Skeet with automatic switching + relay for 24vdc machines
- Combined Trap & Skeet with manual switching via switch + relay for 24vdc machines
- Combined Trap & Skeet & Compak with automatic switching
- Combined Trap & Skeet & Compak with manual switching via switch
- Combined Trap & Skeet & Compak with automatic switching + relay for 24vdc machines
- Combined Trap & Skeet & Compak with manual switching via switch + relay for 24vdc machines
